Bridge type Electronic Remote Control Tripod Turnstile Gate Biometrics Fingerprint Scanner
Main features:
- Tripod turnstiles are compact and cost-effective entrance solutions.
- The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
- Tripod turnstile is ideal for both indoor and outdoor settings.
- It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
- In case of emergency, the turnstile horizontal arm will drop down to allow free passage when power off.
- It is suitable for areas with high traffic.
Product Application
Three arm Tripod Turnstile is suitable for office building,residential area,school,hospital,government building and so on.It is widely uesed for access control,pedestrian management with IC/ID cards,barcode tickets,fingerprint/face recognition etc.It's main special function is anti-collision,you can even use your foot kick the arm,and the turnstile still can work very well,very good quality.
Product description:
1. Fingerprint and RFID Semi automatic bi-direction tripod turnstile.
2. The housing of our tripod turnstile adopts SUS304 stainless steel materials; it is robust and durable design.
3. The standard electrical interfaces are flexible for integration with external systems;
4. They could be integrated with multiple devices like card and fingerprint readers.
5. Our tripod turnstiles can be used for access control, time attendance management applications and suitable for stations, wharfs, tourist attractions, exhibition and convention centers or special channel control for communities, factories, enterprises and public institutions etc.
6. Unified quality standards are implemented to ensure overall reliability, stability and fluency.
Specifications of Tripod Turnstile Gate:
| Item | Fingerprint scanner tripod turnstile |
| Lane width | 550mm to 600mm |
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Power consumption | 40W |
| Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor | No motor |
| Max flow rate | 25 to 30 person per minute |
| Arm length | 510mm |
| Working temperature | -20°C~60°C |

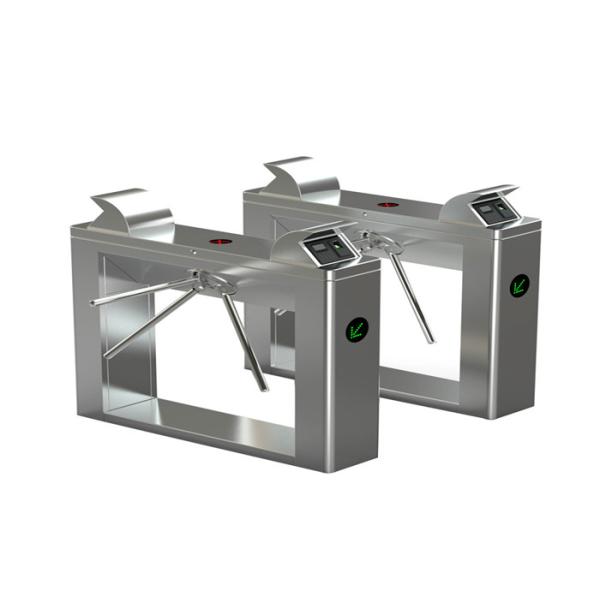

Product photo:
