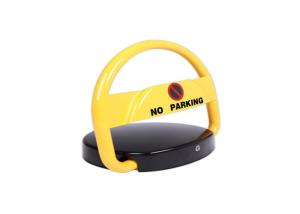

Wireless control automatic parking space barrier with CE certificate
Product Description
1. Parking Lock is an electrical mechanical device designing to avoid parking space being occupied by others.
2. Parking Lock is installed on flat cement floor which are normally installed in 1/3 entrance of parking space.
3. Suitable for parking lot, shopping mall, convenient shop, supermarket, turning of the road, factory, etc.
4. Endurable, Rustproof, anti-ultraviolet radiation and can be used for a very long time.
5. Can be managed jointly with parking meter and other self-service payment facilities. Achieved unattended operation.
6. Reduced the number of the working stuffs and the operating costs of enterprises.
Production Functions & features
The series of parking lock developed by our company is featured by nice appearance, novel structure. easy control, strong function and high security and reliability etc. The parking lock can effectively avoid the misusing or occupation of the parking lock and is a good assistant for parking lock managements of top-grade residential areas, shopping centers, hotels, offices and airports etc.
180°anti collision
The parking lock has flexible design and self-protection function. It can rotate back and forth to protect itself from external collision. And the parking lock will alarm meantime.
Professional Sealing accessory
Adopt top sealing rubber strip material(wider and thicker). The IP protection grade is 67, which can ensure to prevent dust and water from coming inside.
Pressure resistance
curved design and thicker steel shell make it have a good performance in pressure resistance. The parking lock can endure a pressure of 5000kg without damage.
High capacity battery
Use battery which is easy to maintain.
Long remote control distance
Adopt loading coil to increase signal intensity.It has stronger penetration. The effective distance is max. 50 meters.You will feel easy and comfortable to control it.
Specifications of car parking lock:
| Model | SN-BW-8 |
| Weight resistance | Max.5 Tons |
| Input voltage(V) | DC6V AC110/220V |
| working power | DC6V |
| Quiescent current(mA) | ≤0.85Ah |
| Material | 3.0mm steel rolling |
| Finish | Spraying plastic coating |
| Up hight | 390mm |
| Down hight | 60mm |
| Up and down time | 5-6s |
| Remote control distance | ≤50 |
| Working temperature | -30 ~ +65 |
| Lead Acid Battery charging time | |
| Working time after battery charging | 2- 3 months |
| Waterproof | Incomplete waterproof |
| N/W | 8.5Kgs |
| Packing | 460*480*100mm |
More photo:
Production and packing
Installation
1. Installation Position
Do not touch the parking lock when the automobile is going in and out of the parking lock.
2. Installation Site
The lock is required to be installed on level and dry cement ground.
